GK-9P

TRIODE

The GK-9P triode is used for RF power amplification in stationary RF equipment.

GENERAL
Cathode: carbonized thoriated tungsten.
Envelope: glass-to-metal.
Cooling: evaporation for anode, forced air for envelope, stem and seals.

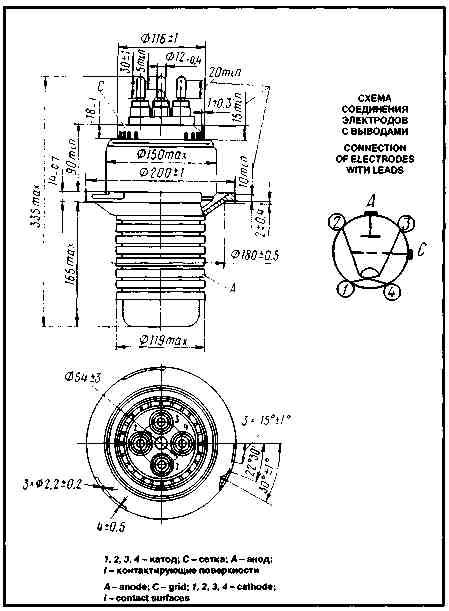

Height: at most 335 mm.
Diameter: at most 201 mm.
Mass: at most 13 kg.

OPERATING ENVIRONMENTAL CONDITIONS
Ambient temperature, °C	-10 to+55
Relative humidity at up to 25 °C, %	98

BASIC DATA Electrical Parameters
Filament voltage, V	8.3
Filament current, A	120-150
Mutual conductance (at anode voltage 1 kV and anode currents 2 and 12 A), mA/V	42-58
Gain coefficient (at anode voltages 4 and 8 kV and anode current 2.5 A)	24-32
Negative cutoff voltage, V, max.:
at anode voltage 10 kV and anode current 0.2 A	420
at anode voltage 12 kV and anode current 0.2 A	600
Interelectrode capacitance, pF, max.:
input	80
output	2
transfer	50
Output power (at filament voltage 6.3 V and anode voltage 10 kV), kW, at least	13

Limit Operating Values
Filament voltage, V	7.9-8.7
Anode voltage (DC), kV	12
Negative bias voltage, kV	1
Filament starting current, A	250
Dissipation, W:
anode	2.5x104
grid	500
Operating frequency, MHz	2
Temperature at envelope, stem and seals, °C	150

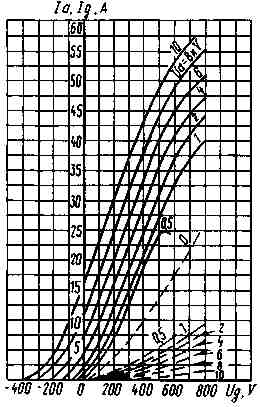

Averaged Characteristic Curves:
U_f = 8.3V
_____ anode-grid;
- - - grid

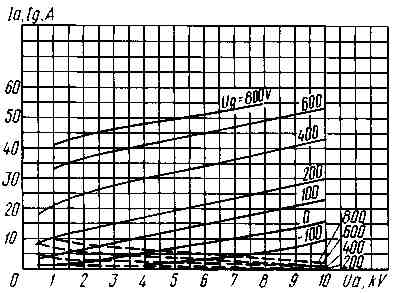

Averaged Characteristic Curves:
U_f = 8.3V
_____ anode;
_ _ _ grid-anode
