GU-10A

TRIODE

The GU-10A triode is used for generation and power amplification in RF equipment.

GENERAL
Cathode: directly heated, carbonized thonated tungsten.
Envelope: glass-to-metal.
Cooling: forced (water for anode, air for bulb and stem).

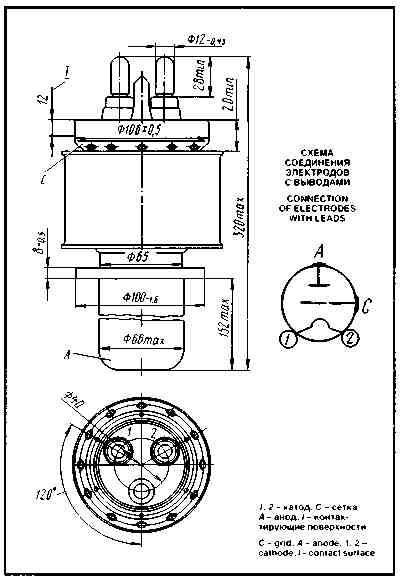

Height: at most 320 mm.
Diameter: at most 100 mm.
Mass: at most 3 kg.

BASIC DATA Electrical Parameters
Filament voltage, V	7
Filament current, A	70-80
Mutual conductance (at anode voltage 2 kV. anode currents 2.5 and 5 A), mA/V	15-25
Gain coefficient (at anode voltages 2 and 4 kV, anode current 2.5 A)	40-45
Anode current (at anode voltage 5 kV), A	0.6-1.2
Interelectrode capacitance, pF
input, at most	40
output, at most	34
transfer, at most	1.5

Limit Operating Values
Filament voltage, V	7-7.3
Anode voltage, kV	8
Filament starting current, A	115
Dissipation, W:
anode	1.0x104
grid	300
Operating frequency, MHz	26
Temperature at envelope, stem and seals, °C	150
