GU-19-1
TETRODE
GENERAL
Cathode: indirectly heated, oxide-coated.
Envelope: glass, with base.
Height: at most 100 mm.
Diameter: at most 40 mm.
Mass: at most 100 g.
1.jpg)

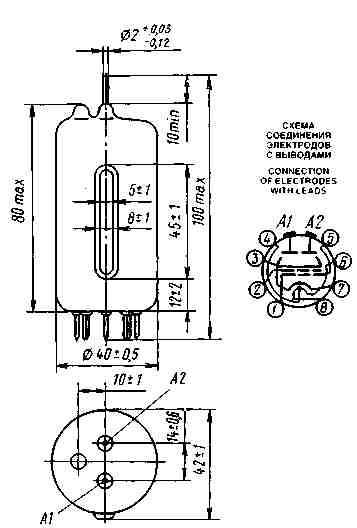

1 - grid 1 of first tetrode; 2 - grid 2; 3 - cathode and beam forming plates; 4 - heater (centre tap); 5 - grid 1 of second tetrode; 6 - heater; 7 - cathode; 8 - heater: A1 - anode of first tetrode - top lead; A2 - anode of second tetrode - top lead
| OPERATING ENVIRONMENTAL CONDITIONS | |
| Vibration loads: | |
| frequencies, Hz | 1-200 |
| acceleration, m/s² | 49 |
| Multiple impacts with acceleration, m/s² | 392 |
| Relative humidity at up to 35°C, % | 98 |
|
BASIC DATA Electrical Parameters |
|
| Heater voltage, V: | |
| with series connection | 12.6 |
| with parallel connection | 6.3 |
| Heater current, A: | |
| with series connection | 0.75-0.95 |
| with parallel connection | 1.5-1.9 |
| Mutual conductance (at anode voltage 350 V, grid 2 voltage 250 V, grid 1 changing voltage of first tetrode and grid 1 voltage 100 V of second tetrode, anode current 40 mA), mA/V, at least | 4 |
| Anode current (at anode voltage 350 V, grid 2 voltage 250 V, grid 1 voltage 17 V of first tetrode, grid 1 voltage 100 V of second tetrode), mA | 18-75 |
| Output power at 500 MHz (at anode voltage 350 V, grid 2 voltage 250 V, voltage 55 V of grids 1, grid 2 currents not above 26 mA, anode current 240 mA), W, at least | 40 |
| Interelectrode capacitance, pF | |
| input | 7.5-12.5 |
| output | 2.8-4.2 |
| transfer, at most | 0.8 |
| Limit Operating Values | |
| Heater voltage (AC or DC), V: | |
| with series connection | 11.4-13.8 |
| with parallel connection | 5.7-6.9 |
| Anode voltage (DC), V | 750 |
| Grid 2 voltage (DC), V | 250 |
| Cathode-heater voltage (DC), V | ±100 |
| Cathode current (DC component), mA | 280 |
| Dissipation, W: | |
| anode | 40 |
| grid 2 | 60 |
| grids 1 | 1.0 |
| Operating freguency, MHz | 500 |
| Bulb temperature, °C | 250 |
1.jpg)

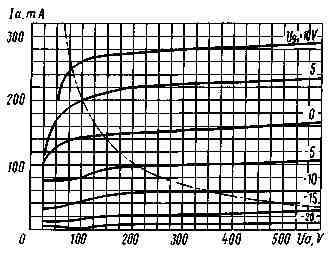

Averaged Anode Characteristic Curves (Each Tetrode)
Uf = 12.6V; Ug2 = 200V;
__ . __ Pa max
2.jpg)

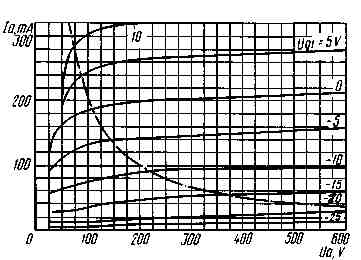

Averaged Anode Characteristic Curves (Each Tetrode):
Uf = 12.6V; Ug2 = 250V;
__ . __ Pa max
1.jpg)

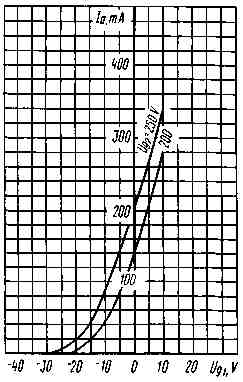

Averaged Anode-Grid Characteristic Curves (Each Tetrode)
2.jpg)

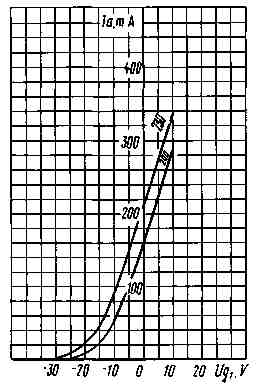

Averaged Anode-Grid Characteristic Curves (Each Tetrode):
Uf = 12.6V; Ua = 550V
