GU-22A

TRIODE

The GU-22A triode is used as an amplifier or oscillator at frequencies up to 26 MHz in grounded-grid circuits, in stationary RF equipment.

GENERAL
Cathode: directly heated, carbonized thoriated tungsten.
Envelope: glass-to-metal.
Cooling: forced (water for anode, air for envelope and seals).

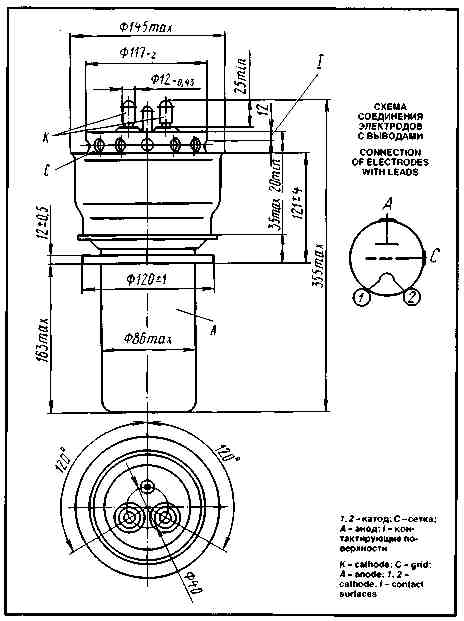

Height: at most 355 mm.
Diameter: at most 120 mm.
Mass: at most 5 kg.


OPERATING ENVIRONMENTAL CONDITIONS
Ambient temperature, °C	5-50
Relative humidity at up to +25 °C, %	98

BASIC DATA
Electrical Parameters

Filament voltage, V 8.3

Filament current, A 140-160

Mutual conductance (at anode voltage 5 kV, anode currents 2 and 4 A), mA/V 28-35

Gain coefficient (at anode voltages 5 and 8 kV and anode current 2 A) 41-58

Anode current at zero grid voltage (at anode voltage 5 kV), A 1.1-2.3

Interelectrode capacitance, pF:

input, at most 55

output, at most 1.5

transfer, at most 45

Limit Operating Values

Filament voltage, V 7.8-8.3

Anode voltage, kV 10

Filament starting current, A 225

Dissipation, W:

anode 20

grid 0.6

Pulse duration, µs 1.000

Operating frequency, MHz 26

Temperature at envelope, stem and seals, °C 150
