GU-23A

TRIODE

The GU-23A triode is used for generation and power amplification in stationary RF equipment.

GENERAL
Cathode: directly heated, carbonized thoriated tungsten.
Envelope: glass-to-metal.
Cooling: forced (water for anode and leads of cathode and grid, air for stem, envelope and seals).

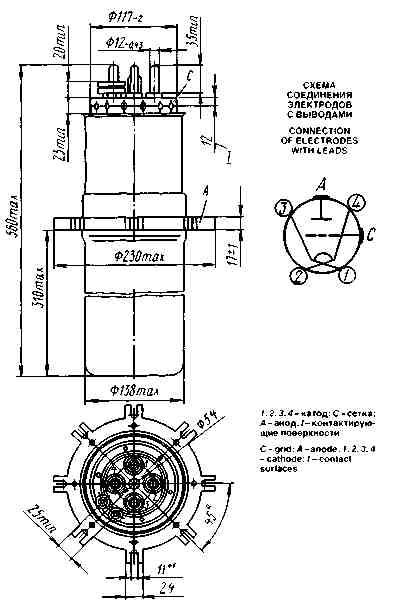

Height: at most 560 mm.
Diameter: at most 230 mm.
Mass: at most 11 kg.

BASIC DATA Electrical Parameters
Filament voltage, V	12
Filament current, A	195-225
Mutual conductance (at anode voltage 5 KV anode currents 7 and 12 A), mA/V	42-56
Gain coefficient i at anode voltages 5 and 8 kV and anode current 7 A)	42-57
Anode current (at anode voltage 8 kV ana zero grid voltage), A	3-4.3
Interelectrode capacitance, pF:
input, at most	100
output, at most	3
transfer, at most	65

Limit Operating Values
Filament voltage, V	11.5-12
Anode voltage (DC), kV	11
Filament starting current, A	315
Dissipation, kW:
anode	60
grid	2.6
Operating frequency, MHz	26
Temperature at envelope, stem and seals, °C	150
