GU-23B

TRIODE

The GU-23B triode is used as an amplifier or oscillator at up to 30 MHz in RF equipment.

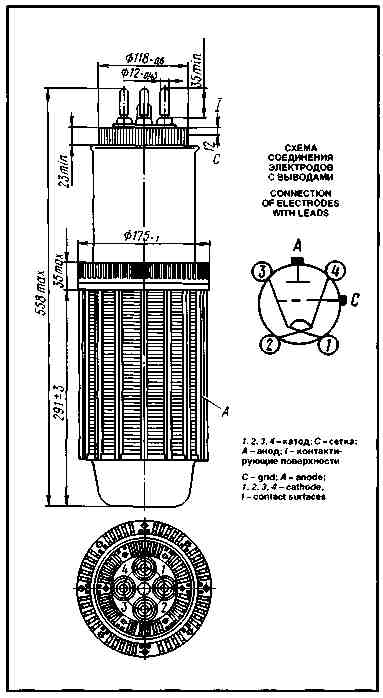

GENERAL
Cathode: directly heated, carbonized thoriated tungsten.
Envelope: glass-to-metal.
Cooling: forced air.
Height: at most 550 mm.
Diameter: at most 175 mm.
Mass: at most 15 kg.

BASIC DATA Electrical Parameters
Filament voltage, V	12
Filament current, A	195-125
Anode current at zero grid voltage (at anode voltage 8 kV), A	2.9-4.3
Mutual conductance (at anode voltage 4 kV, anode currents 7 and 12 A), mA/V	41-56
Gain coefficient (at anode voltages 4 and 7 kV and anode current 7 A)	42-58
Interelectrode capacitance, pF:
input, at most	100
output, at most	2
transfer,at most	65

Limit Operating Values
Filament voltage, V	12
Anode voltage, kV	12
Filament starting current, A	315
Dissipation, kW:
anode	50
grid	2.6
Operating frequency, MHz	26
Temperature at anode, °C	200
Temperature at envelope and seals, °C	150
