GU-29

TETRODE

The GU-29 beam-power double tetrode is used as an oscillator and a power amplifier operating in the metric wavelength range in RF equipment.

GENERAL
Cathode: indirectly heated, oxide-coated.
Envelope: glass, no-base.
Cooling: forced air.

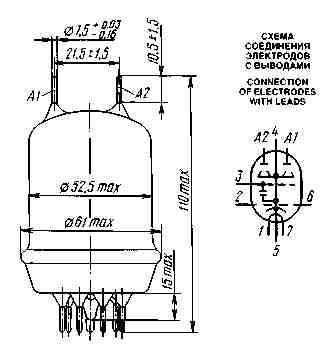

Height: at most 110 mm.
Diameter: at most 61 mm.
Mass: at most 125 g.

1, 7 - heater; 2 - grid 1 of second tetrode; 3 - grid 2; 4 - cathode and beam-forming plates; 5 - heater (centre tap): 6 - grid 1 of first tetrode; A1 - anode of first tetrode - top lead; A2 - anode of second tetrode-top lead

BASIC DATA Electrical Parameters
Heater voltage, V	12.6
Heater current, A	1-1.3
Anode current (at anode voltage 250 V, grid 1 voltage 11 V of first tetrode, grid 1 voltage 100 V of second tetrode, grid 2 voltage 175 V), mA	38-85
Interelectrode capacitance, pF:
input, at most	13-17
output, at most	5-9
transfer, at most	0.1
Output power, W, min:
at anode voltage 400 V, grid 2 voltage at most 225 V, operating frequency 100-200 MHz	42
over 500 h of service	34

Limit Operating Values
Heater voltage, V:
with heaters connected in parallel	5.7-6.9
with heaters connected in series	11.3-13.8
Anode voltage, V	750
Grid 2 voltage, V	225
Dissipation, W:
anodes	40
grid 2	7
grid 1	1-
Envelope temperature, °C	175

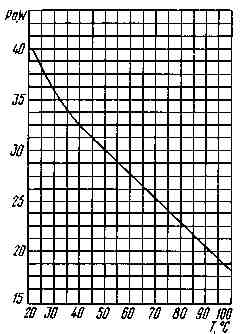

Characteristic Curve Showing Anode Dissipation versus Ambient Temperature (at bulb temperature T_b 175 °C)
