GU-39P-1

TETRODE

The GU-39P-1 tetrode is used as a power amplifier in stationary short-wave transmitters

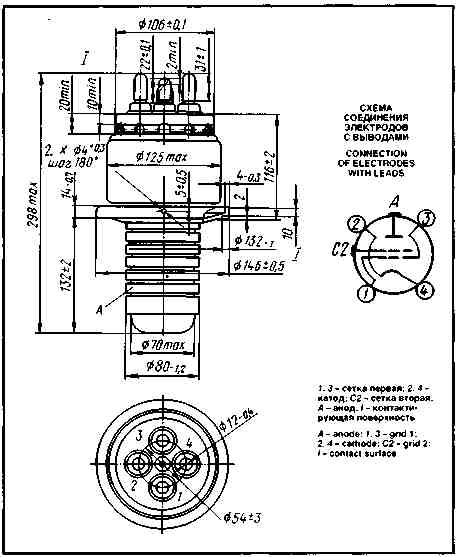

GENERAL
Cathode: directly heated, carbonized thoriated tungsten
Envelope: glass-to-metal
Cooling: forced (evaporation for anode, air for stem and envelope)
Height: at most 298 mm
Diameter: at most 146 mm
Mass: at most 4 kg


OPERATING ENVIRONMENTAL CONDITIONS
Ambient temperature, °C	-10 to +55
Relative humidity at up to +25 °C, %	98

BASIC DATA
Electrical Parameters

Filament voltage, V 6.3

Filament current, A 85-105

Mutual conductance (at anode voltage 3 kV, grid 2 voltage 1 kV, anode currents, 1.5 and 2 A), mA/V 20-28

Gain coefficient (grid 1 -grid 2) (at anode voltage 3 kV, grid 2 voltages 1 and 1.2 kV, anode current 1.5 A) 6-9

Anode current (at anode voltage 3 kV, grid 1 voltage -100 V, grid 2 voltage 1 kV), A 1

Negative bias voltage (at anode voltage 8.5 kV, grid 1 voltage 1.2 kV, anode current 0.5 A), V 130-190

Interelectrode capacitance, pF:

input, at most 90

output, at most 29

transfer, at most 0.7

grid 2-cathode, at least 50

Output power (at anode voltage 10 kV, operating frequency 30 MHz), kW, at least 13

Limit Operating Values

Filament voltage, V 6-6.6

Anode voltage (DC), kV 10

Negative grid 1 voltage, V 800

Grid 2 voltage (DC), kV 2

Filament starting current, A 150

Dissipation, W:

anode 1x10⁴

grid 2 450

grid 1 200

Operating frequency (cutoff value), MHz 100

Temperature at envelope, stem and seals, °C 150

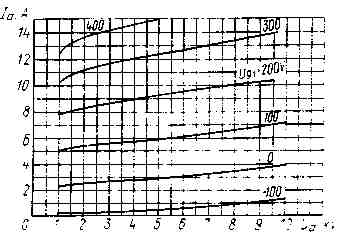

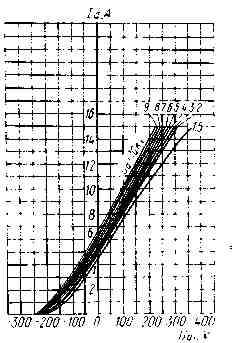

Averaged Anode Characteristic Curves:
U_a = 6.3V; U_g2 = 1kV

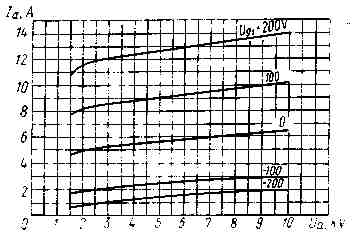

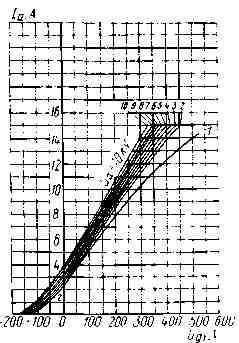

Averaged Anode Characteristic Curves:
U_f = 6.3V; U_g2 = 1.5kV

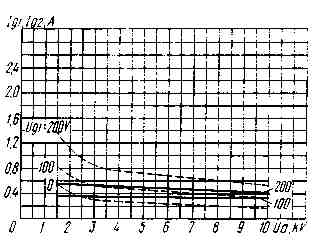

Averaged Characteristic Curves:
U_f = 6.3V; U_g2 = 1kV;
_____ grid 1-anode;
_ _ _ grid 2-anode

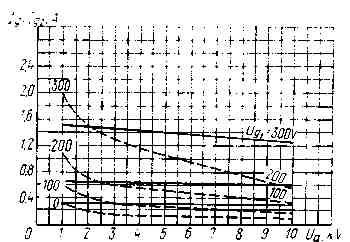

Averaged Characteristic Curves:
U_f = 6.3V; U_g2 = 1.5kV;
_____ grid 1-anode;
_ _ _ grid 2-anode

Averaged Anode-Grid Characteristic Curves:
U_f = 6.3V; U_g2 = 1.5kV

Averaged Anode-Grid Characteristic Curves:
U_f = 6.3V; U_g2 = 1.5kV

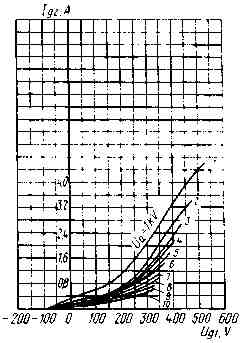

Averaged Grid 1 Characteristic Curves:
U_f = 6.3V; U_g2 = 1kV

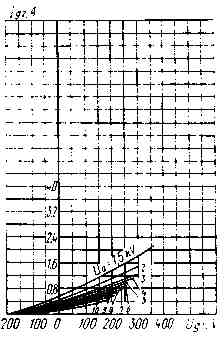

Averaged Grid 2 Characteristic Curves:
U_f = 6.3V; U_g2 = 1.5kV

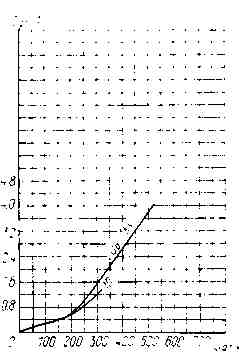

Averaged Grid 2 Characteristic Curves:
U_f = 6.3V; U_g2 = 1kV

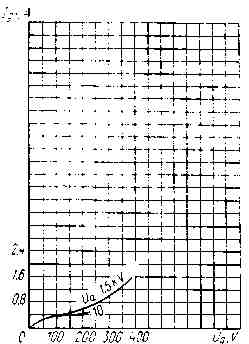

Averaged Grid 2 Characteristic Curves:
U_f = 6.3V; U_g2 = 1.5kV

BASIC DATA Electrical Parameters
Filament voltage, V	6.3
Filament current, A	85-105
Mutual conductance (at anode voltage 3 kV, grid 2 voltage 1 kV, anode currents, 1.5 and 2 A), mA/V	20-28
Gain coefficient (grid 1 -grid 2) (at anode voltage 3 kV, grid 2 voltages 1 and 1.2 kV, anode current 1.5 A)	6-9
Anode current (at anode voltage 3 kV, grid 1 voltage -100 V, grid 2 voltage 1 kV), A	1
Negative bias voltage (at anode voltage 8.5 kV, grid 1 voltage 1.2 kV, anode current 0.5 A), V	130-190
Interelectrode capacitance, pF:
input, at most	90
output, at most	29
transfer, at most	0.7
grid 2-cathode, at least	50
Output power (at anode voltage 10 kV, operating frequency 30 MHz), kW, at least	13

Limit Operating Values
Filament voltage, V	6-6.6
Anode voltage (DC), kV	10
Negative grid 1 voltage, V	800
Grid 2 voltage (DC), kV	2
Filament starting current, A	150
Dissipation, W:
anode	1x10⁴
grid 2	450
grid 1	200
Operating frequency (cutoff value), MHz	100
Temperature at envelope, stem and seals, °C	150
