GU-63
TETRODE
The GU-63 double tetrode is used as an oscillator and a power amplifier at frequencies up to 250 MHz
GENERAL
Cathode: indirectly heated, oxide-coated.
Envelope: glass-to-metal with cathode ring.
Mass: at most 40 g

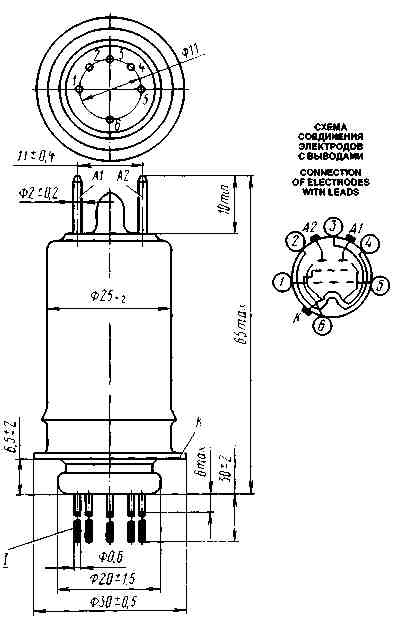

1 - grid 1 of second tetrode; 2, 4- heater; 3 - cathode; 5 - grid 1 of first tetrode; 6 - grid 2; A1 - anode of first tetrode - top cap; A2 - anode of second tetrode - top cap; Ê - cathode; I - snap leads
OPERATING ENVIRONMENTAL CONDITIONS | |
Vibration loads: | |
frequencies, Hz | 5-1,000 |
acceleration, m/s² | 98-25 |
Multiple impacts with acceleration, m/s² | 343 |
Single impacts with acceleration, m/s² | 4,900 |
Linear bads with acceleration, m/s² | 980 |
Ambient temperature, °C | -65 to +70 |
Relative humidity at up to +40 °C, % | 95-98 |
BASIC DATA Electrical Parameters |
|
Heater voltage (AC or DC), V | 6.3 |
Heater current, mA | 630-750 |
Anode voltage (DC), V | 150 |
Grid 2 voltage (DC), V | 250 |
Anode current (at grid 1 voltage 0 of first tetrode and -75 V of second tetrode), mA | 50-120 |
Mutual conductance (at grid 1 voltage -16V of first tetrode and -75 V of second tetrode), mA/V | 1.8-3.8 |
Grid 1 reverse current (at heater voltage 7 V, anode voltage 400 V, anode current 30 mA), µA, at most | 1 |
Oscillatory power (at anode voltage 300 V, grid 1 voltage -60 V of first and second tetrodes, drive voltage about 110V, anode current 80 mA, grid 2 voltage about 12 mA, at 200 MHz), W, at least | 11 |
Warm up time, s, at most | 30 |
Vibronoise voltage (at resistance 2 kOm in anode circuit), mV (r.m.s.): | |
at frequencies 50-1,000 Hz | 1,500 |
at frequencies 1,000-2,000 Hz | 2,000 |
Interelectrode capacitance, pF: | |
input, at most | 7.0-9.6 |
output, at most | 1.3-2.6 |
transfer, at most | 0.1 |
Limit Operating Values | |
Heater voltage (AC or DC), V | 5.7-7 |
Anode voltage (DC), V | 700 |
Grid 2 voltage (DC), V | 300 |
Grid 1 voltage (DC), V | -200 |
Drive voltage, V | 110 |
Dissipation, W: | |
anodes | 13 |
grid 2 | 3 |
grid 1 | 0.5 |
Anode current (DC component), mA | 40 |
Voltage between cathode and heater, V | -150 to +150 |

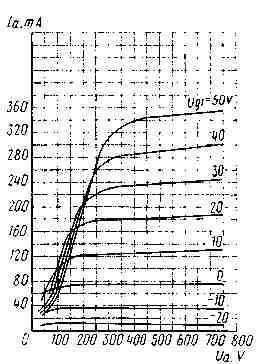

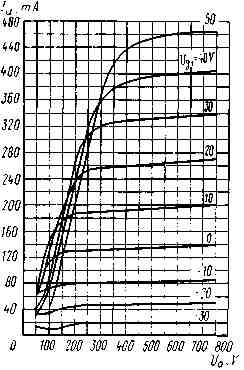

Averaged Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 200V

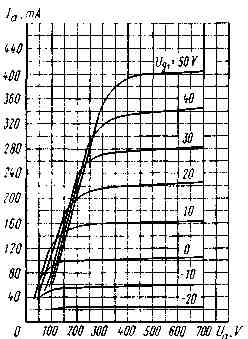

Averaged Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 250V
Averaged Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 300V

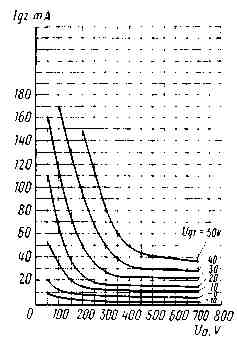

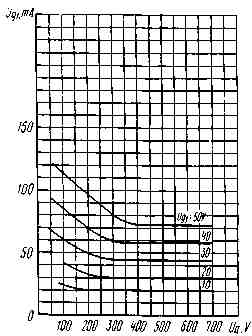

Averaged Grid-Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 200V

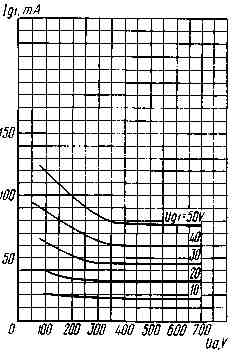

Averaged Grid-Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 200V

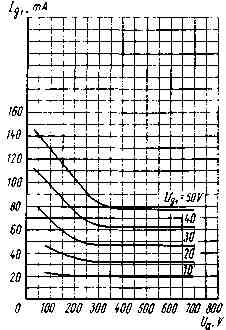

Averaged Grid-Anode Characteristic Curves:
Uf = 6.3V; Ug2 = 250V
Averaged Grid-Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 250V

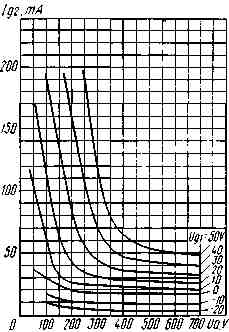

Averaged Grid-Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 300V
Averaged Grid-Anode Characteristic Curves (Each Tetrode):
Uf = 6.3V; Ug2 = 300V

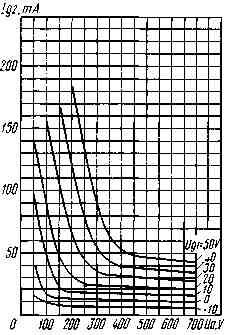

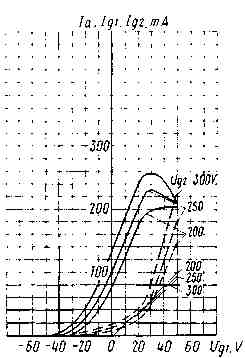

Averaged Anode-Grid Characteristic Curves:
Uf = 6.3V; Ua = 200V
_____ Ia;
- - - Ig2;
- . - Ig1
Main Menu
|
All Types
|
Contact Us
|
Order Form
|
Warranty
|
Quality
|
Company Profile

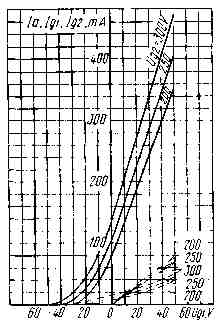

Averaged Anode-Grid and Grid Characteristic Curves (Each Tetrode):
