GU-92 B

TETRODE

The GU-92B tetrode is used in RF power amplifier circuits in stationary general-purpose RF equipment, including television transmitters.

GENERAL
Cathode: directly heated, carbonized thoriated tungsten.
Envelope: metal ceramic.
Cooling: forced air.
Working position: upright, anode down.
Height: at most 200 mm.
Diameter: at most 190 mm.
Mass: at most 15 kg.

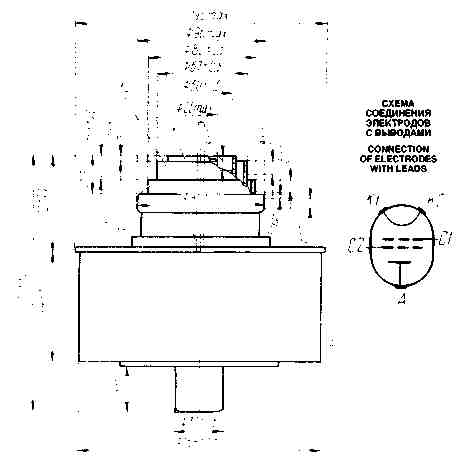

A - anode; K1, K2 - cathode; C1 - grid 1; C2 - grid 2

BASIC DATA Electrical Parameters
Filament voltage (AC or DC), V	9.5
Filament current, A	130-160
Peak anode current (at anode voltage 2 kV, grid 2 voltage 1 kV, grid 1 voltage 120 V), A	22
Mutual conductance (at anode voltage 2 kV, grid 2 voltage 1 kV and anode currents 6 and 8 A), mA/V, at least	60
Negative grid 1 cutoff voltage, absolute value (at anode voltage 8 kV, grid 2 voltage 1 kV, anode current 0.3 A), V at most	350
Static amplification factor (at anode voltage 2 kV, grid 2 voltages 1 and 1.2 kV, anode current 6 A), at least	4
Output power at black level (at bandwidth 8 MHz, frequency up to 250 MHz), kW, at least	15
Output power at sync pulse level (at bandwidth 8 MHz, frequencies up to 250 MHz), kW, at least	25
Interelectrode capacitance in common-grid circuit, pF:
input	120
output	24
transfer	0.15

Limit Operating Values
Filament voltage (AC or DC), V	10
Filament starting current (peak value,) A	300
Anode voltage (DC), kV	8
Grid 2 voltage, kV	1.2
Dissipation, W:
anode	25-103
grid 2	250
grid 1	120
Operating frequency, MHz	250
Envelope temperature at hottest point, °C	250

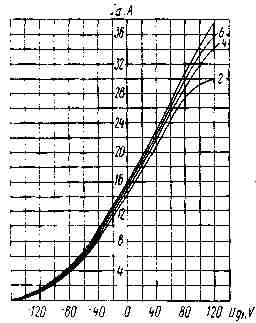

Averaged Anode-Grid Characteristic Curves:
U_f = 9.5V; U_g2 = 1.2kV

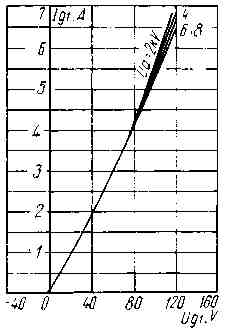

Averaged Grid Characteristic Curves:
U_f = 9.5V; U_g2 = 1.2kV

Averaged Grid Characteristic Curves:
U_f = 9.5V; U_g2 = 1.2kV
