GU-96A

POWER TRIODE

The GU-96A power triode is used as an oscillator in stationary industrial RF heating generator circuits and as a power amplifier in stationary industrial transmitters.

GENERAL
Cathode: directly heated, carbonized thoriated tungsten.
Envelope: metal-ceramic.
Cooling: water for anode, forced air for other envelope elements.

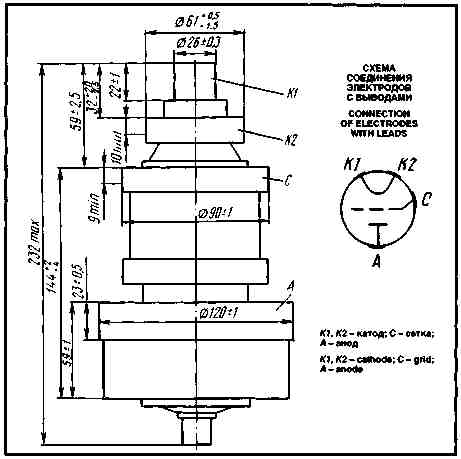

Height: at most 232 mm.
Diameter: at most 120 mm.
Mass: at most 3 kg.


OPERATING ENVIRONMENTAL CONDITIONS

Vibration:

frequencies, Hz 1-35

acceleration, m/s² 5

Multiple impacts with acceleration, m/s² 150

Ambient temperature, °C 1-55

Relative humidity at up to 25 °C (without moisture condensation), % 80

BASIC DATA
Electrical Parameters

Filament voltage, V 6

Filament current, A 60-75

Anode current (at filament voltage 6 V, anode voltage 0.4 kV, grid voltage 200 V), at least 2.9

Negative cutoff voltage, absolute value (at filament voltage 6 V, anode voltage 3 kV, anode current 0.1 A), V, at most 130

Mutual conductance (at filament voltage 6 V, anode voltage 2 kV, anode currents 1 and 2 A), mA/V 20-28

Interelectrode capacitance, pF:

grid-anode 25

grid-cathode 45

anode-cathode 1

Limit Operating Values

Filament voltage (AC), V 6.3

Filament starting current (peak value), A 140

Anode voltage, kV:

at 86-250 MHz 5

at not above 85 MHz 7

Dissipation, kW:

anode 4

grid 0.2

Operating frequency, MHz 250

Envelope temperature at the hottest point, °C 175

STANDARD OPERATING CONDITIONS
Self-excitation at 86-250 MHz:

Filament voltage, V 6

Anode voltage (DC), kV 4.5

Anode current (DC component), A 0.74

Grid current (DC component), A 0.15

Resistance in grid circuit, kOm 1.6

Output power, kW 2.5

Anode efficiency, % 75

Self-excitation at not above 85 MHz:

Filament voltage, V 6

Anode voltage (DC), kV 6.8

Anode current (DC component), A 0.74

Grid current (DC component), A 0.15

Resistance in grid circuit, kOm 1.8

Output power, kW 4

Anode efficiency, % 79

Averaged Anode-Grid Characteristic Curves

Averaged Anode-Grid Characteristic Curves
